101" W Aluminum Portable Modular Yard Ramp System

$21,999.99
ITEM #18-101-360-06-MYR
In Stock, Ready to Ship
Delivered in 3 to 5 Business Days

Key Features:

  • Modular yard ramp breaks down for easy single-pallet transportation between facilities or indoor use
  • Aluminum construction with EZ Traction punch plate surface for excellent traction in all weather conditions
  • Measures 30' L x 101" W and accommodates truck or dock heights from 15" to 60"

See More…

Features

Modular design fits on single pallet

The components stack compactly and fit on a single pallet for easy storage; great for seasonal use or if the ramp needs to be transported to another location. The entire system fits in a pickup truck bed or a 4 x 8 trailer, and ships economically via common carrier because of the modular design.

Quick 15-minute set up with two people

There are no tools required to install this ramp system, and it takes two people as little as 15 minutes to measure and position the three ramp stands, then set the eight ramp sections in place and attach the two ratchet safety straps to the upper stand of the trailer.

EZ Traction punch-plate surface grips tires in all weather

The raised, serrated punch plate surface design grips forklift, car or equipment tires while allowing rain, snow and mud to fall right through.

Adjust height incrementally with ramp stands

By setting the height of the ramp stand pairs, the loading height and loading angle of the yard ramp adjusts to work with dock or truck heights as low as 15" and up to 60” high.

Technology & Features
Specifications
Made in the USA
Length:
30'
Width:
8' 5"
Minimum Height:
15"
Maximum Height:
60"
Weight:
2,362 lbs.
Maximum Capacity:
30,000 lb.
Material:
Aluminum
Lift Type:
Height Adjustable Stands
Guard Rail Height:
4"
Usable Width:
8' 3"
More Information

Set up loading access for trucks, trailers or docks in minutes with this portable aluminum yard ramp system. Designed to be set up or broken down by two people in less than 15 minutes without any tools, it can be brought indoors and assembled quickly. Not only for forklift use, the larger width also accommodates cars. This modular system consists of eight ramps and three adjustable height support stands.

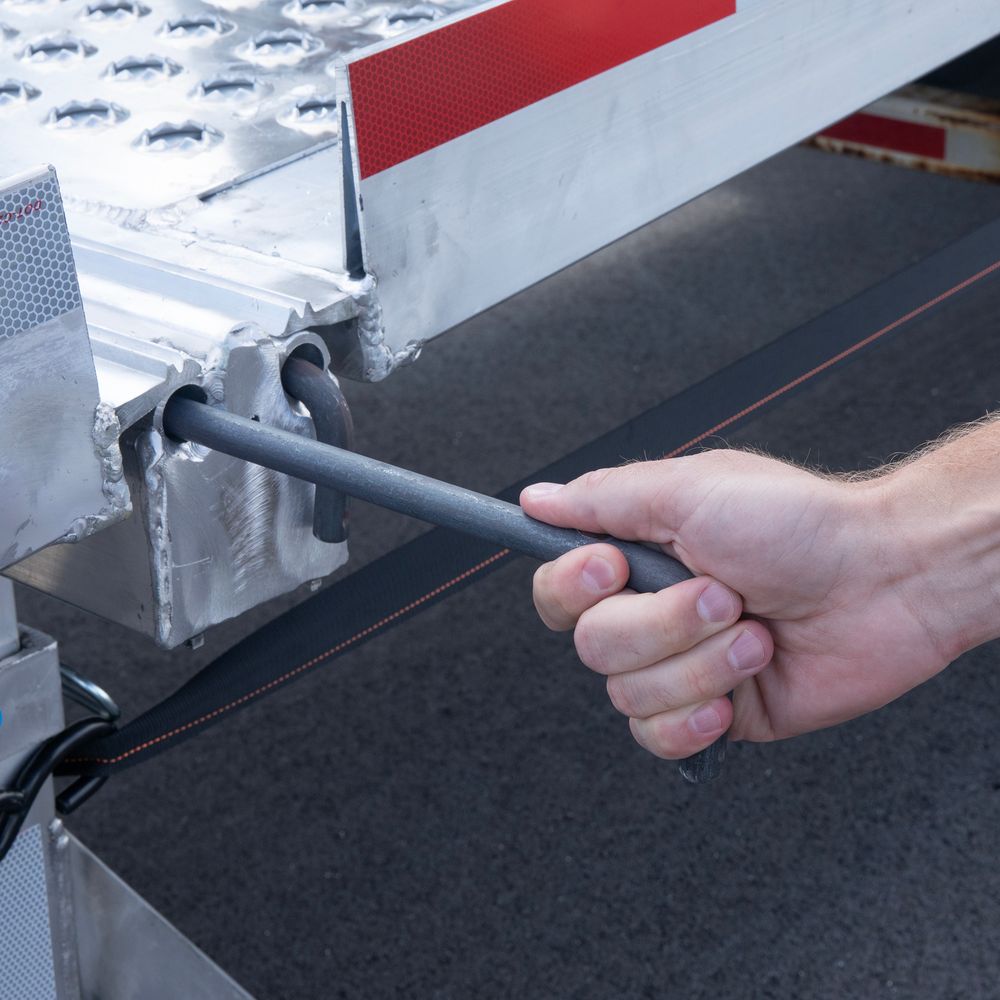

The ramps have pin-on ends which attach securely to the stands. One ramp includes a plate end connector to create a smooth transition from the ramp to truck or trailer, while another includes a knife foot for a smooth transition to the ground. The 4" high rail guards are integrated into the ramp for added safety and maximum structural support.

The ramp system can used in different length configurations from 8' to 30' L, and will accommodate docks, trailers or trucks from 15" - 60" H. To prevent high-centering, the ramp can be set up with a level-off at the top by locking the ramp stand height at 38" to 48" high. The entire system will fit in a pickup truck bed or a 4 x 8 trailer, and ships economically on one pallet via common carrier. Two 18' safety straps are included. US Patent #10710824.

  • Modular yard ramp breaks down for easy single-pallet transportation between facilities or indoor use
  • Aluminum construction with EZ Traction punch plate surface for excellent traction in all weather conditions
  • Measures 30' L x 101" W and accommodates truck or dock heights from 15" to 60"
