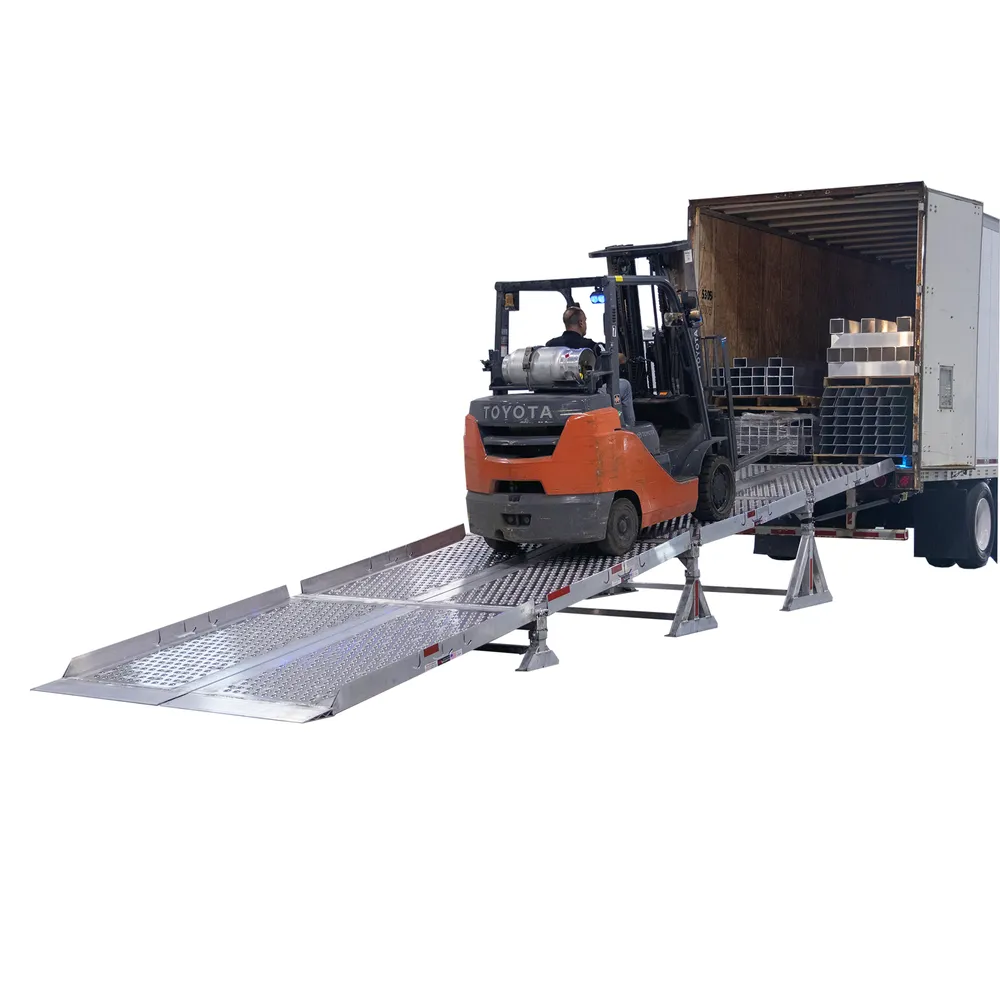

84" W Aluminum Portable Modular Yard Ramp System
$15,881.99
MSRP
Key Features:
- Modular yard ramp breaks down for easy single-pallet transportation between facilities
- Made in the USA of aluminum with EZ Traction punch plate surface for excellent traction in all weather conditions
- Measures 30' L x 84" W and accommodates truck or dock heights from 15" to 60"
Technology & Features
Technology & Features
Specifications
Made in the USA
Length:
30'
Width:
7'
Minimum Height:
15"
Maximum Height:
60"
Weight:
1,942 lbs.
Maximum Capacity:
25,000 lbs.
Material:
Aluminum
Lift Type:
Height Adjustable Stands
Guard Rail Height:
6"
Usable Width:
6' 10"
More Information
Set up loading access for trucks, trailers or docks in minutes with this portable aluminum yard ramp system. Designed to be set up by two people in less than 15 minutes without any tools, this modular system consists of eight ramps and three adjustable height support stands.
The ramps have pin-on ends which attach securely to the stands. One ramp includes a plate end connector to create a smooth transition from the ramp to truck or trailer, while another includes a knife foot for a smooth transition to the ground. The 6" high rail guards are integrated into the ramp for added safety and maximum structural support.
The ramp system can used in different length configurations from 8' to 30' L, and will accommodate docks, trailers or trucks from 15" - 60" H. The entire system will fit in a pickup truck bed or a 4 x 8 trailer, and ships economically on one pallet via common carrier. Two 18' safety straps are included. Patent pending.
- Modular yard ramp breaks down for easy single-pallet transportation between facilities
- Made in the USA of aluminum with EZ Traction punch plate surface for excellent traction in all weather conditions
- Measures 30' L x 84" W and accommodates truck or dock heights from 15" to 60"
